Nagakawa Mono 5 HP NT-C50R1T20 ceiling cassette air conditioner (3-phase)

Name: Nagakawa Mono 5 HP NT-C50R1T20 ceiling cassette air conditioner (3-phase)
Brand: Nagakawa
SKU: NT-C50R1T20-3PHA
Rating: 4.9 (19 reviews)

NT-C50R1T20-3PHANagakawa5 HP4.9(19)20 sold

Nagakawa Mono 5 HP NT-C50R1T20 ceiling cassette air conditioner (3-phase) 1

1/13

Full installation

34.500.000 đ

~~39.500.000 đ~~ -13%

Includes installation labor and standard materials

Installation fee: FreeIncluded materials: 4m copper pipe, twin electrical wire, flexible drain hose, tape, screwsInstallation notes: Free installation labor + vacuum purging (inner Ho Chi Minh City)From 60 - 70m² · from 160 - 210m³Cooling capacity: 50.000 BTUColor: WhiteRelease year: 2022

Warranty

Unit3 years

Compressor3 years

Product information

Type	1 chiều (chỉ làm lạnh)
Inverter	Non-Inverter
Cooling capacity	5 HP - 50000 BTU
Effective cooling range	From 60 - 70m² (from 160 - 210m³)
Noise level	Indoor unit 43 dB - Outdoor unit 60 dB
Launch year	2022
Made in	Malaysia
Indoor unit / outdoor unit warranty	3 years
Compressor warranty	3 years
Heat exchanger material	Copper refrigerant pipes - Aluminum fins with Hydrophilic coating
Refrigerant type	R-410A

Power consumption

Power consumption	3.77 kWh
Energy-saving technology	Eco

Air filtration capability

Dust filtration / antibacterial / deodorizing	Dust filter

Cooling technology

Airflow modes	Automatic up-down air swing, manually adjustable left-right
Rapid cooling technology	Super

Features

Features	LED display screen

Dimensions / installation

Indoor unit dimensions	Length 84 cm - Height 29 cm - Depth 84 cm
Indoor unit weight	28 kg
Outdoor unit dimensions	Length 94 cm - Height 135 cm - Depth 34 cm
Outdoor unit weight	74 kg
Copper pipe length	Minimum 3m - Maximum 20m
Maximum height difference	30m
Input current	Outdoor unit
Operating current	3-phase
Copper pipe size	10/19
Maximum number of connected indoor units	1

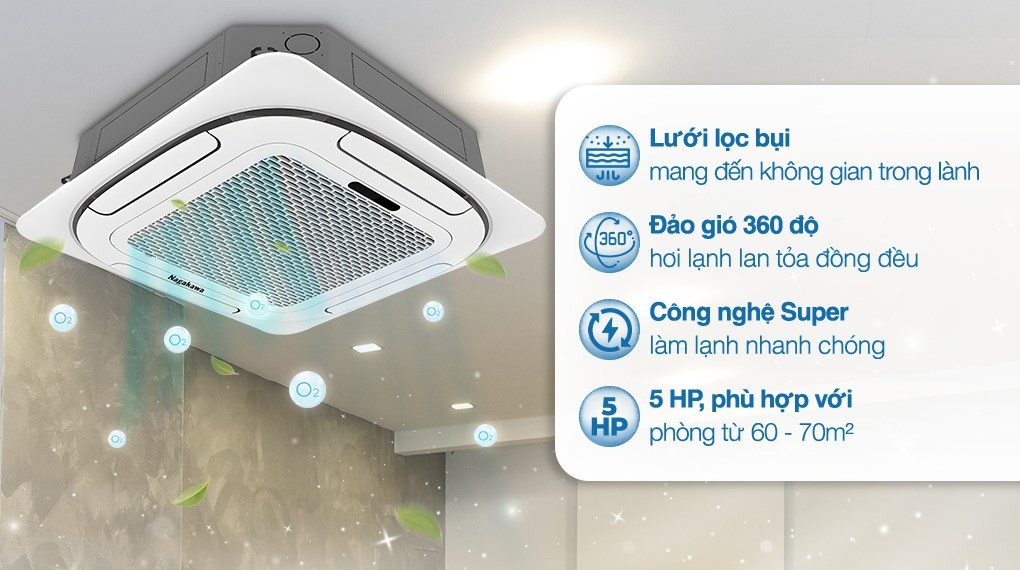

The Nagakawa Mono 5 HP NT-C50R1T20 is a 3-phase, cooling only ceiling cassette air conditioner with a minimalist design and energy savings thanks to Eco technology. The unit features a dust filter for fresher air and a Super mode for fast cooling.

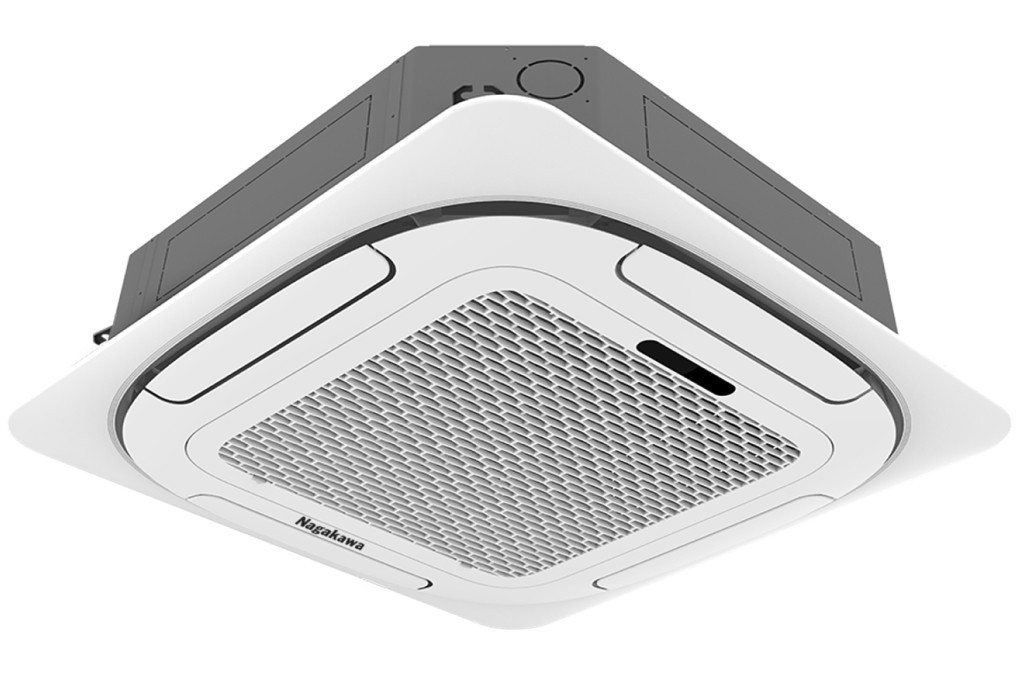

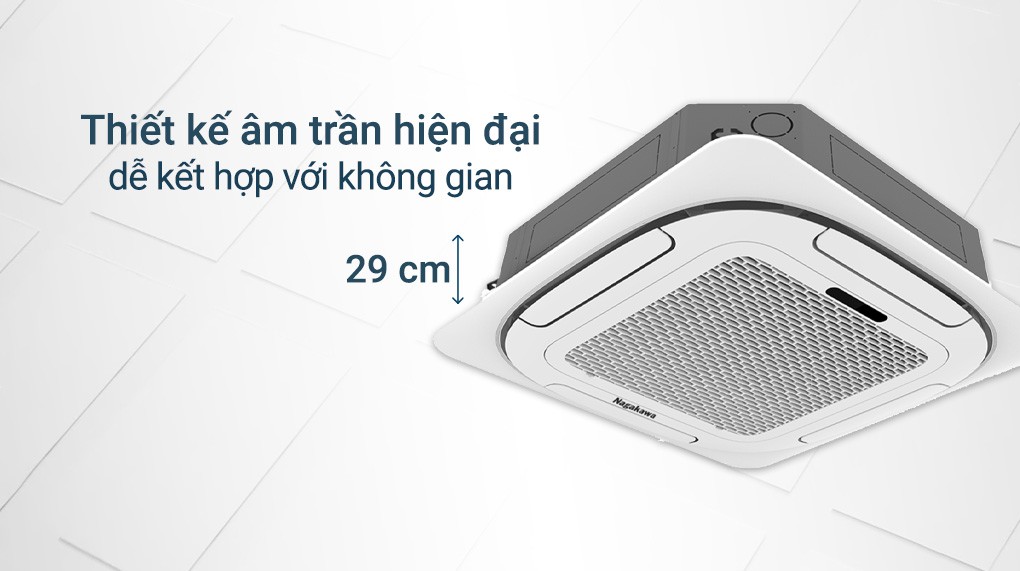

Square design, easy installation

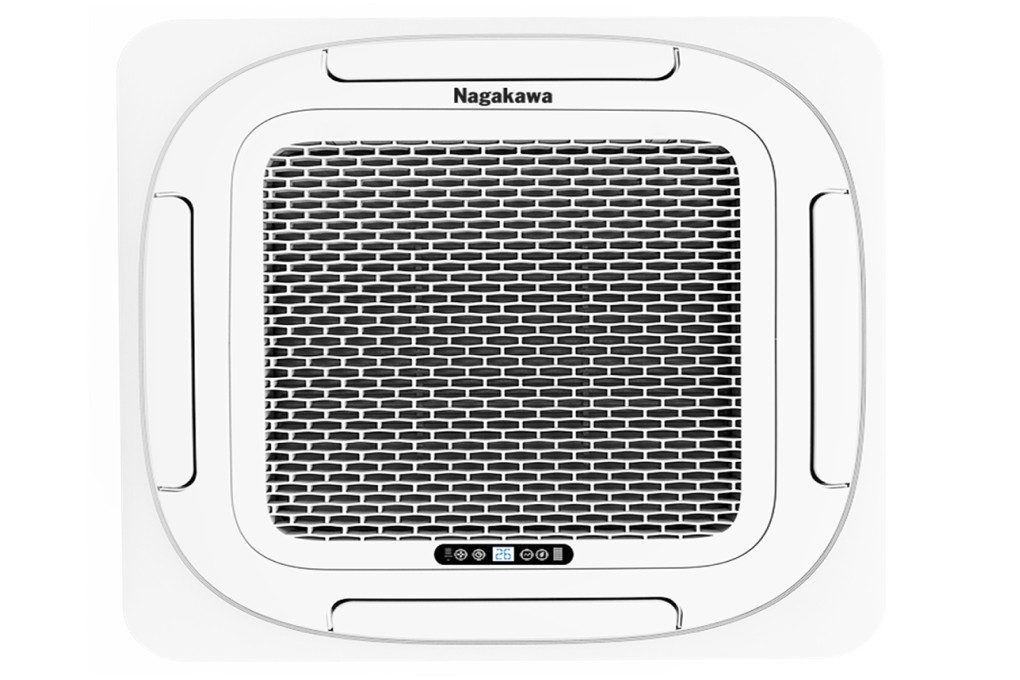

Indoor unit

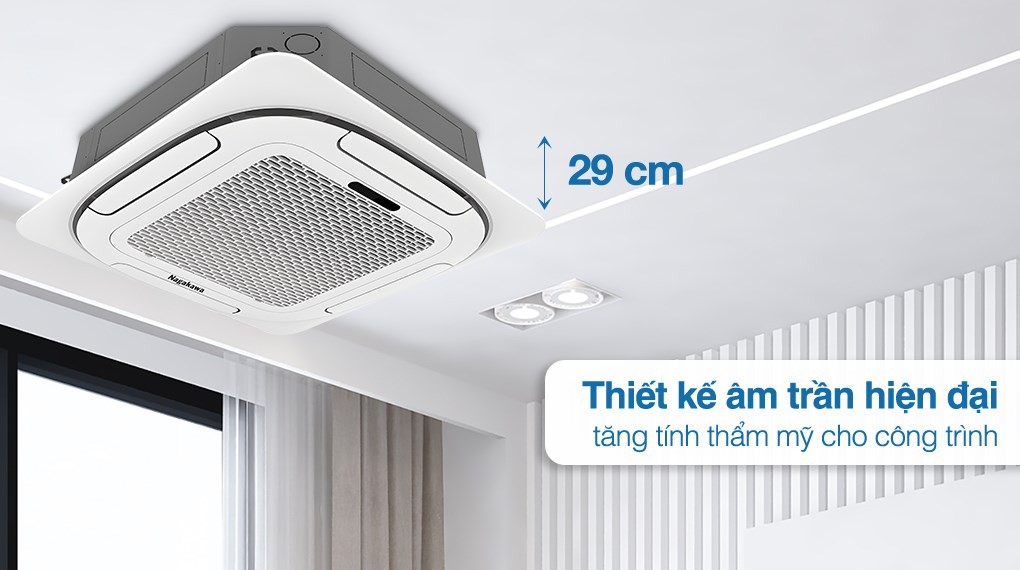

The square indoor unit with skillfully rounded edges gives an elegant overall look that suits any interior style; its structure also makes construction and installation convenient.

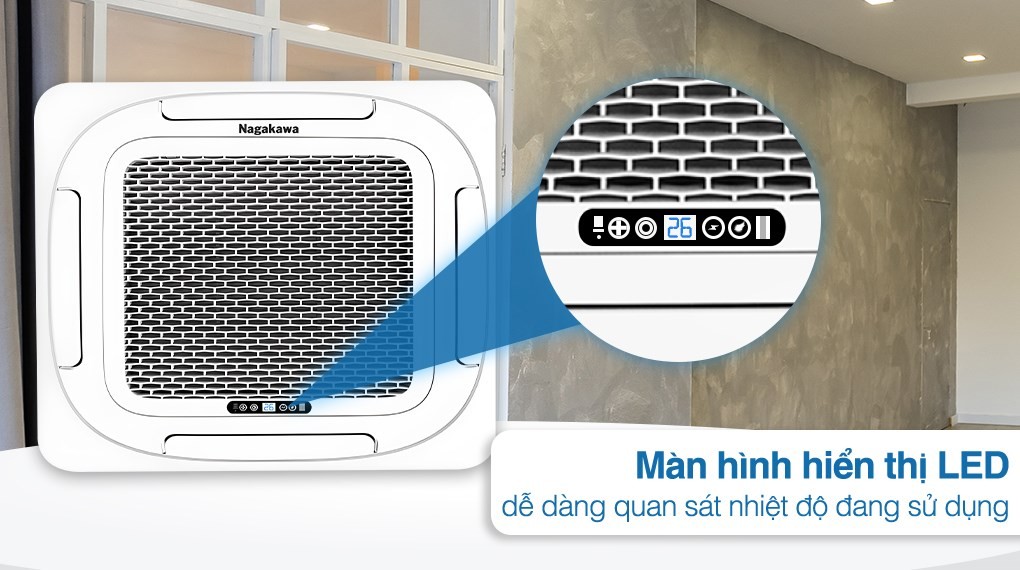

The LED screen displays the temperature clearly and remains easy to read even in a dark room.

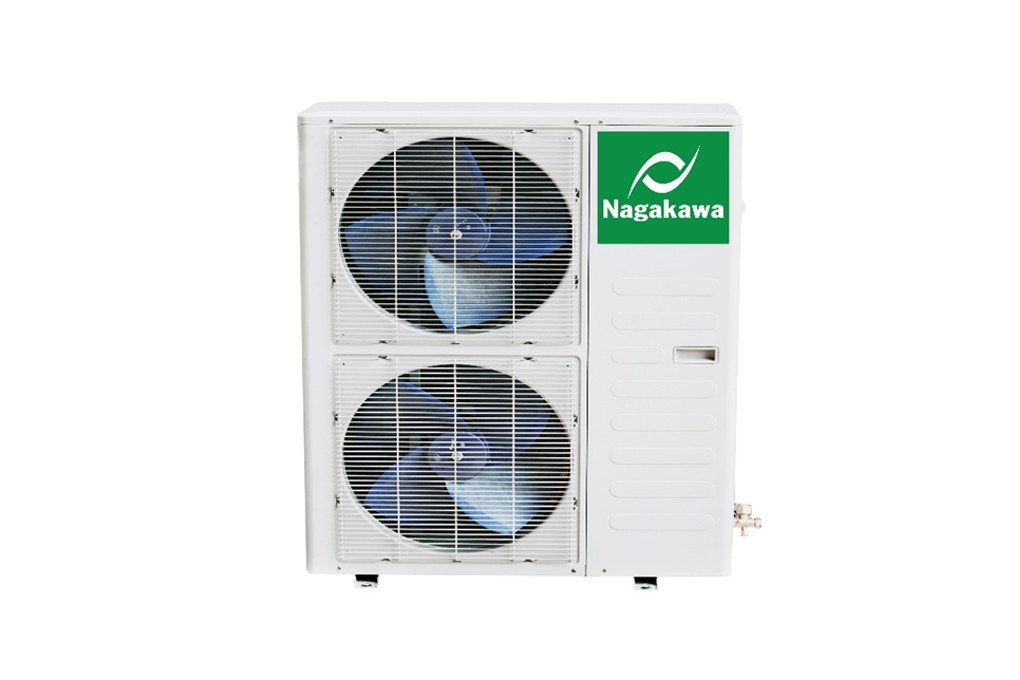

Outdoor unit

The outdoor unit is a rectangular box with a durable steel casing that withstands harsh weather.
Copper refrigerant pipes and sturdy aluminum fins with a Hydrophilic coating resist corrosion, protect the coil surface well and improve cooling efficiency, making it well suited to Vietnam's climate.

Nagakawa 5 HP NT-C50R1T20 ceiling cassette air conditioner

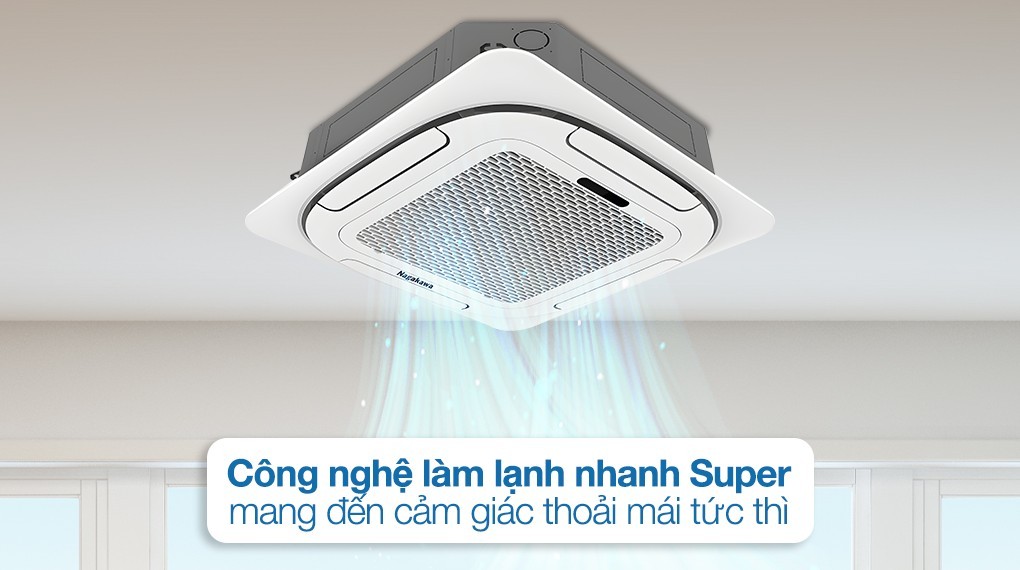

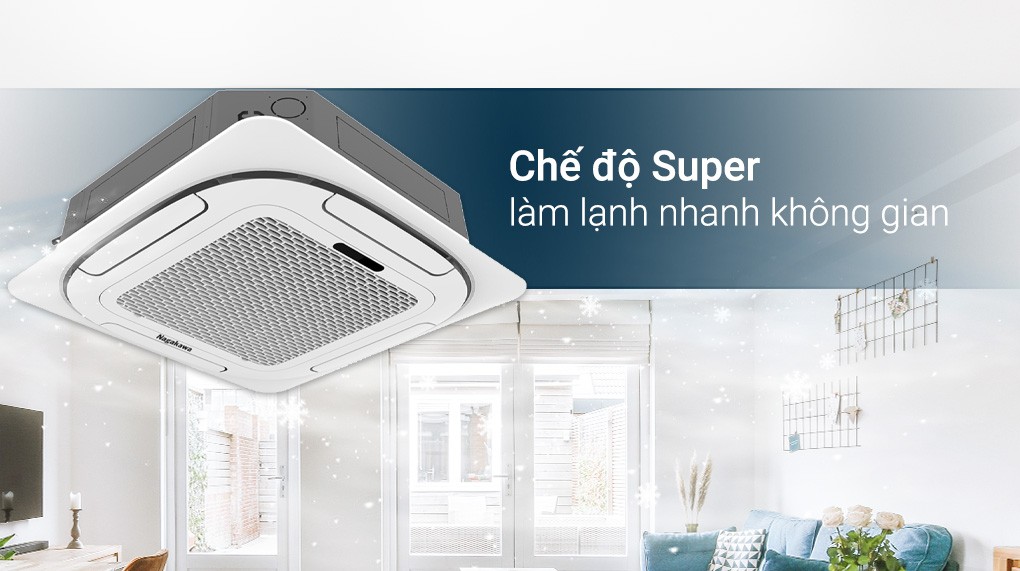

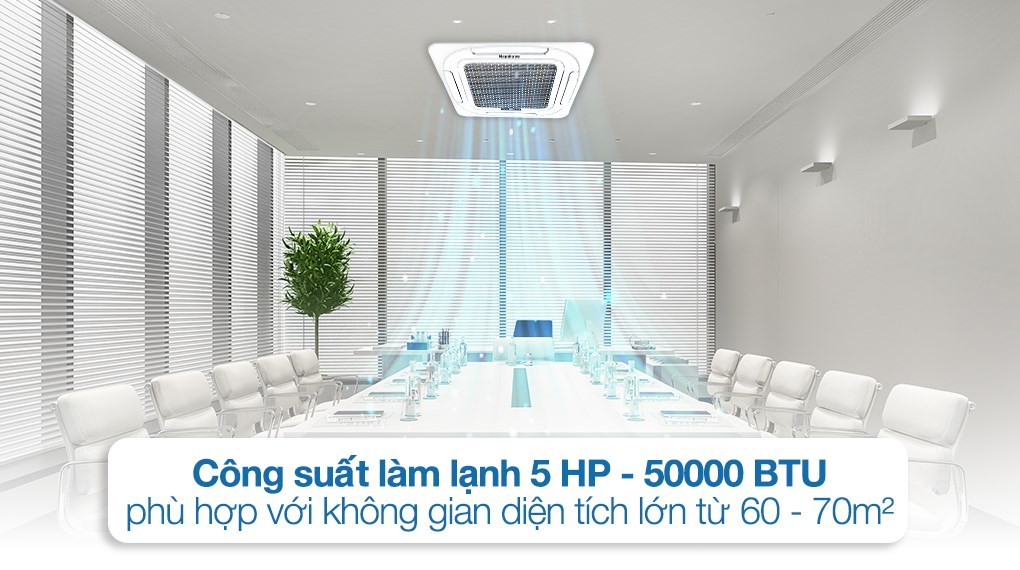

5 HP capacity, Super fast cooling

With a cooling capacity of 5 HP, the unit is suitable for areas of 60 - 70m² (volume 160 - 210m³).
When the Super fast cooling mode is turned on, cool air quickly spreads throughout the room, so you feel comfortable within the first few minutes of entering.

Nagakawa 5 HP NT-C50R1T20 ceiling cassette air conditioner

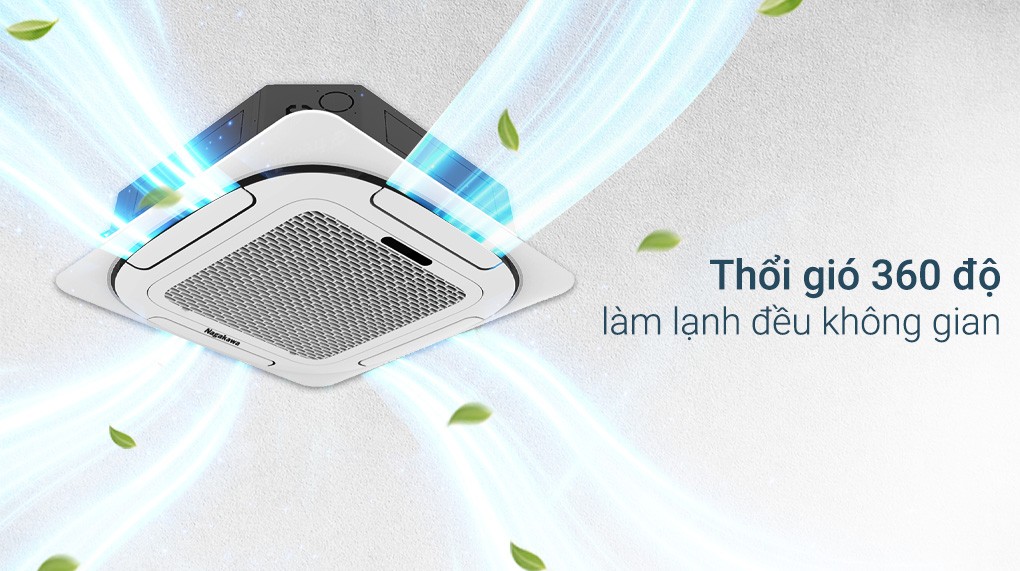

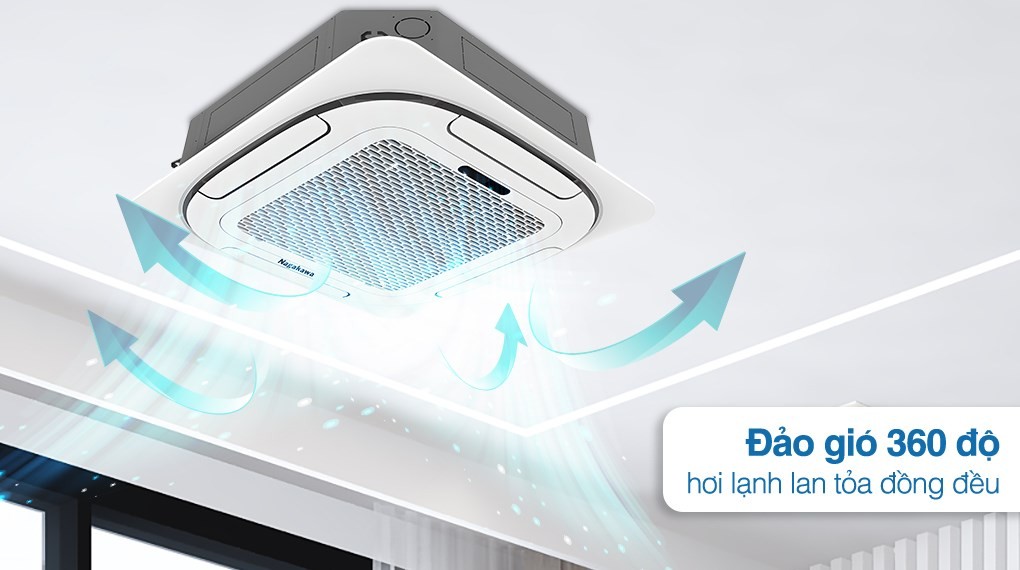

4 air vents with 360-degree airflow

Nagakawa equips this Mono model with 4 air vents that can swing 360 degrees, helping cool air spread widely and evenly across the room, giving everyone a refreshing sensation.

Nagakawa 5 HP NT-C50R1T20 ceiling cassette air conditioner

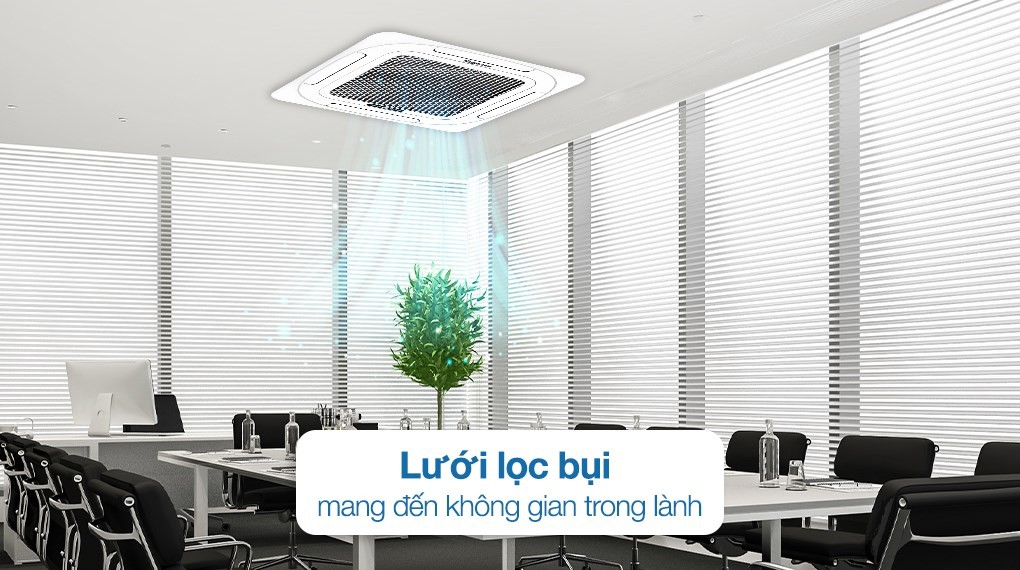

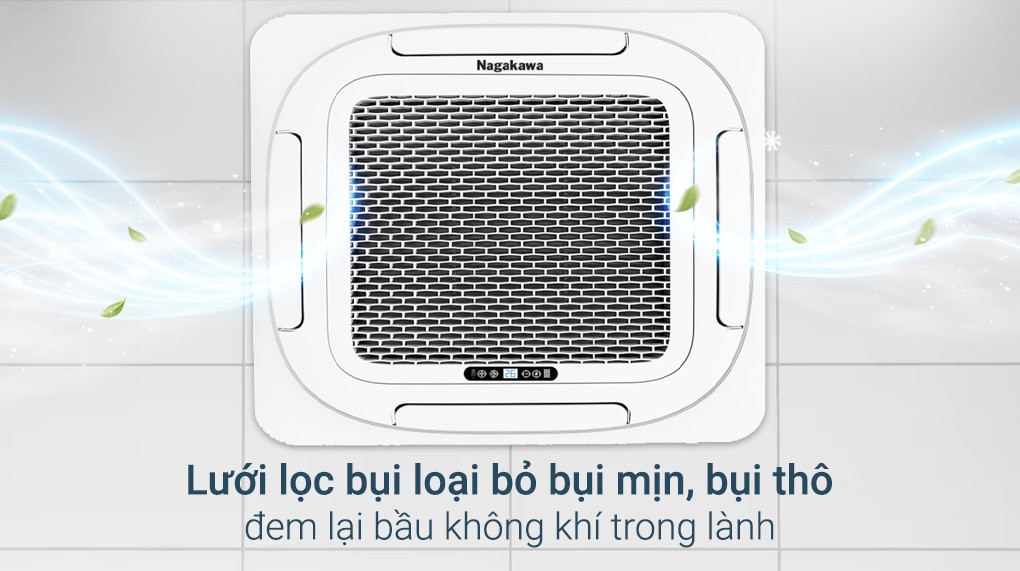

Dust filter to protect your health

The unit is equipped with a dust filter that captures dust and mold at a basic level, helping protect the respiratory health of the elderly and young children, and providing a cleaner, safer space for the whole family.

Nagakawa 5 HP NT-C50R1T20 ceiling cassette air conditioner

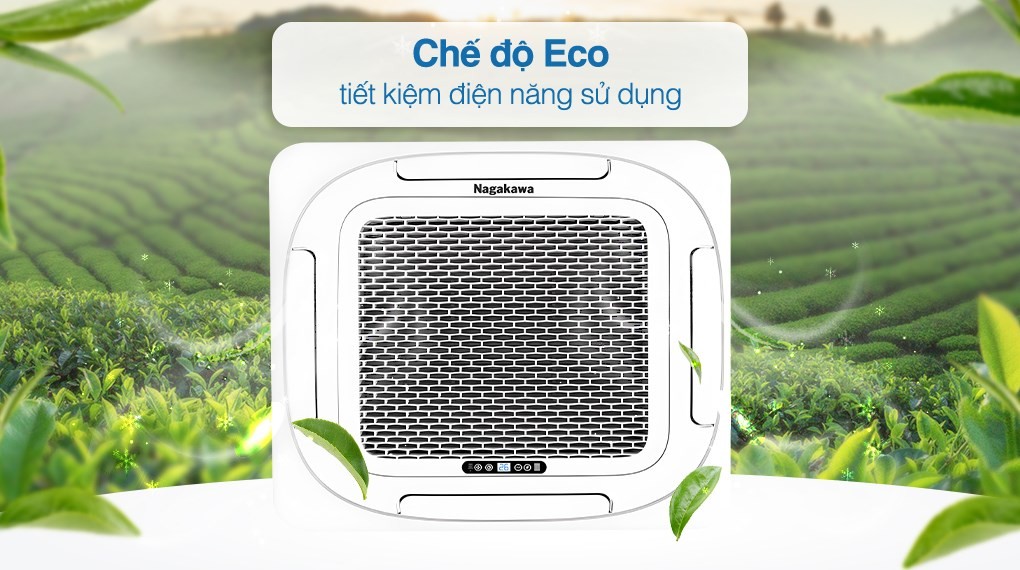

Eco technology for energy savings

With Eco technology, the compressor runs at low power while maintaining cooling performance, thereby saving as much energy as possible.

Nagakawa 5 HP NT-C50R1T20 ceiling cassette air conditioner - Eco mode

The Nagakawa Mono 5 HP NT-C50R1T20 is suitable for large spaces of 60 - 70m² such as offices or large common rooms with 3-phase power, that need a ceiling cassette air conditioner with fast cooling in Super mode, energy savings thanks to Eco, and a dust filter to keep the air fresh.
